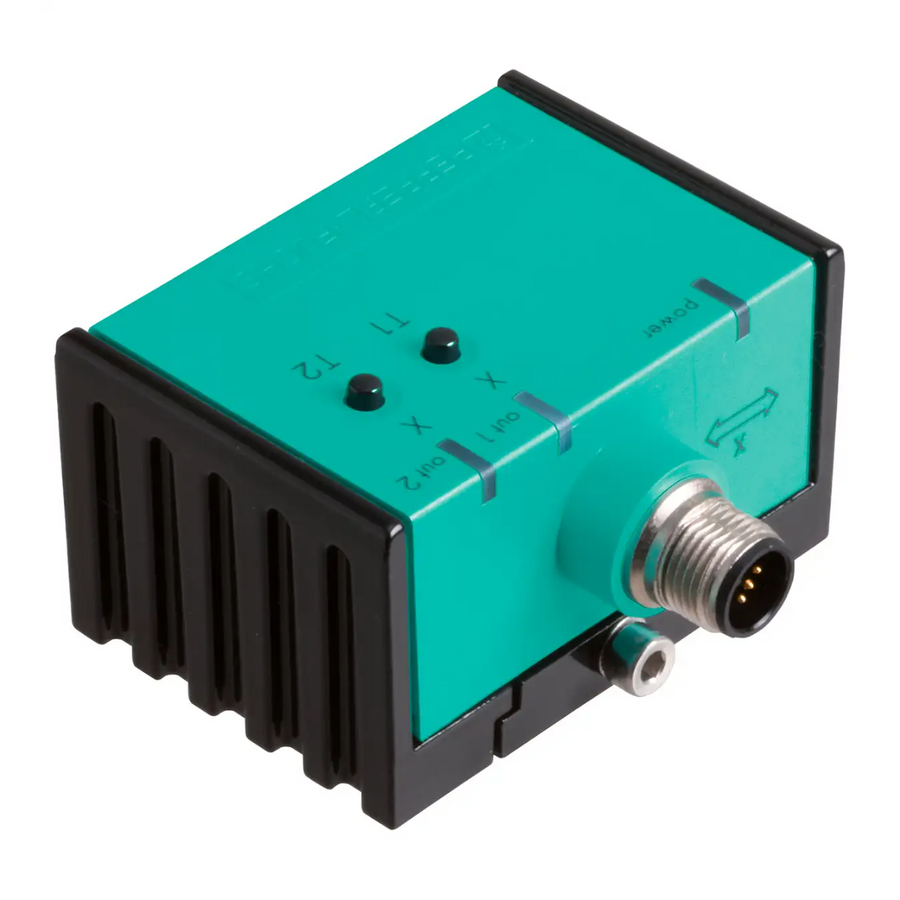

Pepperl+Fuchs INX360D-F99-U2E2-V15 Inclination Sensor

Brand: Pepperl+Fuchs

Category: Industrial Inclination Sensor (360° Tilt Sensor)

Model Family: INX360 Series

The Pepperl+Fuchs INX360D-F99-U2E2-V15 is a high-precision inclination sensor designed for industrial automation and motion monitoring applications. It provides accurate 360° angle measurement, making it ideal for equipment positioning, leveling systems, and machinery used in demanding industrial environments. This sensor delivers reliable performance with fast response time, high accuracy, and programmable switching outputs for flexible control. Its analog output enables seamless integration into control systems, while strong noise immunity ensures stable operation in electrically harsh conditions. Built for durability, it features a rugged housing with IP68/IP69K protection and high shock resistance, ensuring long-term reliability in harsh environments. It is a dependable solution for industrial use where precision and consistency are critical.

Quick Tech Specs

Measurement Range: 0° to 360° (1-axis)
Accuracy: ≤ ±0.5°
Resolution: ≤ 0.1°
Repeatability: ≤ ±0.1°
Response Time: ≤ 20 ms
Analog Output: 0–5 V
Switching Outputs: 2 × PNP (NO), programmable
Operating Voltage: 10–30 V DC
Current Consumption: ≤ 25 mA
Protection: IP68 / IP69K
Operating Temperature: -40°C to +85°C
Shock Resistance: 100 g (DIN EN 60068-2-27)
EMC Immunity: Up to 100 V/m
Connection: M12, 5-pin connector
Housing Material: PA
Certifications: UL (cULus), E1 Type Approval

Know Your Gear

The INX360D-F99-U2E2-V15 from Pepperl+Fuchs is a high-precision industrial inclination sensor designed for accurate 360° tilt measurement in demanding environments. Featuring a robust one-axis design, it delivers reliable performance with high accuracy, fast response time, and excellent repeatability, making it suitable for applications requiring precise position and angle monitoring.

Built for harsh industrial conditions, the sensor offers IP68/IP69K protection, high shock resistance, and strong immunity to electromagnetic interference up to 100 V/m. It supports both analog output (0–5 V) and dual programmable switching outputs, allowing flexible integration into automation and control systems. With its wide operating temperature range and rugged construction, the INX360 sensor is ideal for use in machinery, mobile equipment, and industrial automation applications where durability and precision are critical.

Pepperl+Fuchs INX360D-F99-U2E2-V15 Inclination Sensor

Quick Tech Specs

Measurement Range: 0° to 360° (1-axis)

Accuracy: ≤ ±0.5°

Resolution: ≤ 0.1°

Repeatability: ≤ ±0.1°

Response Time: ≤ 20 ms

Analog Output: 0–5 V

Switching Outputs: 2 × PNP (NO), programmable

Operating Voltage: 10–30 V DC

Current Consumption: ≤ 25 mA

Protection: IP68 / IP69K

Operating Temperature: -40°C to +85°C

Shock Resistance: 100 g (DIN EN 60068-2-27)

EMC Immunity: Up to 100 V/m

Connection: M12, 5-pin connector

Housing Material: PA

Certifications: UL (cULus), E1 Type Approval
