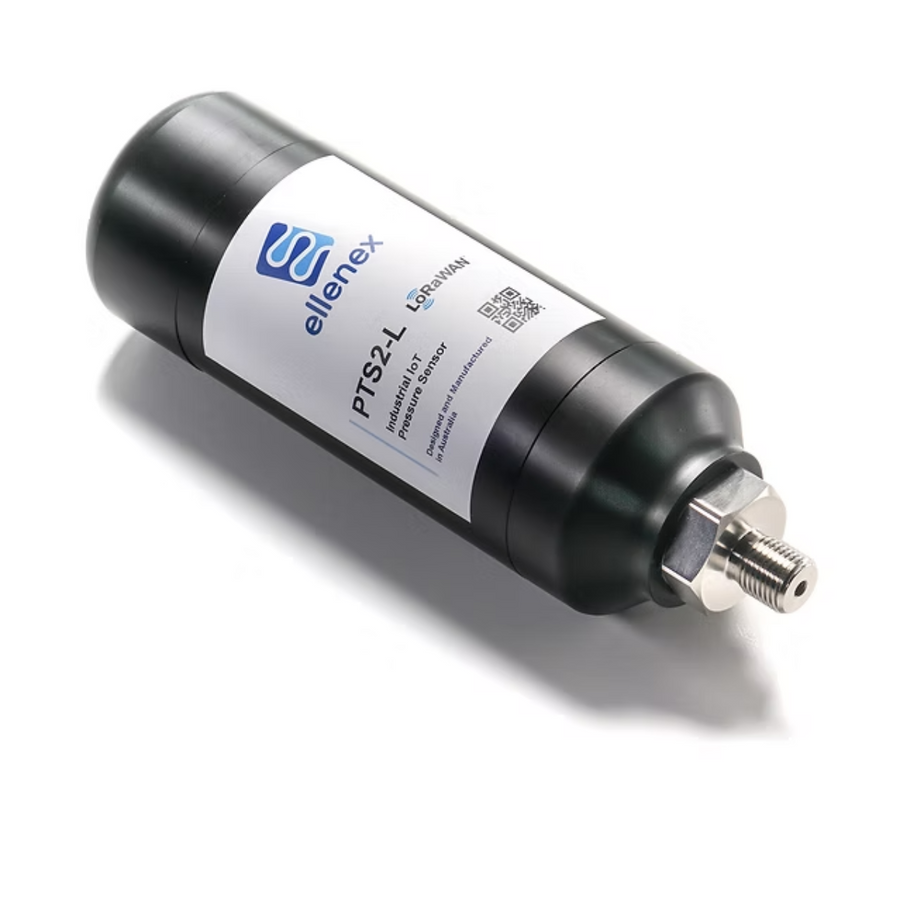

PTS2 L -LoRaWAN Operated Low Power Pressure Transmitter for Liquid and Gas Media

The PTS2 L is a LoRaWAN operated low power pressure transmitter designed for accurate monitoring of liquid and gas media in demanding industrial environments. It supports all LoRaWAN frequency zones and delivers high precision performance with accuracy of ±0.25 percent span and resolution of ±0.01 percent span. The pressure range is selectable from 0 to 0.5 bar up to 1000 bar, with vented gauge, sealed gauge, and absolute reference options. Built with SS304 body, SS316 diaphragm, Viton O ring, and IP66 UV protected enclosure, it is engineered for reliable outdoor operation and long term durability. Designed for ultra low power operation, the PTS2 L features a replaceable 3.6 V lithium battery that supports more than 100,000 readings and over 20,000 transmissions, providing more than 10 years of service life in most applications. It supports periodic or event triggered sampling, configurable transmission intervals via downlink, and over the air firmware updates. The device operates on LoRaWAN Class A by default, with Class C available on request, and can be activated via OTAA or ABP. The PTS2 L is widely used across water and environment, agriculture, oil and gas, marine, mining, smart buildings, transport, food and beverage, and compressed air systems. Typical applications include pump performance monitoring, hydraulic and pneumatic system monitoring, water pipeline pressure monitoring, liquid storage level monitoring, chiller and cooling system monitoring, and air compressor monitoring. It integrates seamlessly with major LoRaWAN networks and leading IIoT platforms such as AWS, Microsoft Azure, Siemens MindSphere, and The Things Network, making it ideal for scalable remote monitoring and data driven operations.
